It is a Stand type Hand operated Concrete Block /Fly Ash Bricks Making Machine Versatile to shift to any working site to cast Blocks /Bricks on wooden or steel ballet.Which is inserted from the front side. It has a top pressing ram operated by the toggle mechanism.Bottom plate is vibrated with efficient light weightecentric vibrator. With the mechanical advantage developed by the toggle with small manual force the knock of the vibrations are bolstered effectively to the blocks.
By Pressing the operating Lever, the moulds leaves the blocks on the pallet. The blocks with the pallet is removed and kept for wet drying manually
|Power : 1 H.P. Vibrater Motor or 2 H.P., 3 Phase motor, 1440 R.P.M. or 5 H.P. air cooled Diesel Engine 1500 R.P.M.|
|Vibration : 6000 Hz|
|Capacity : 600 - 1200 Blocks / Shift ( 1 or 2 Blocks / Stripping )|
|To mix raw material in Fly Ash Bricks Plant, Lime Industries.|
|Capacity : 100 to 300Kg.|
|Material Charge : Manual|
|Material Discharge : Bottom Door Opening (Manual)|
|Mixing : By Heavy Rollers & Hard Faced Scrappers.|

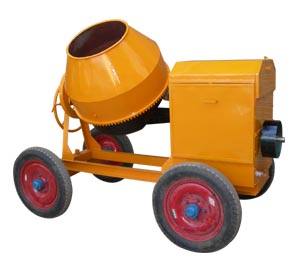

Tilting Drum type,One bag capacity Cast Iron / Mild Steel Body with suitable Frame,Taper Roller Bearings and Metal bushing Pinion Shaft.
Foundation type (Suitable for Concrete Block Unit)
